Gas Storage System

Liquigas follow strictly guidelines of IS 6044 part I & II, OISD standards, Gas cylinder rules and CE norms wherever necessary for all LPG and NG Installations.

We are ISO 9001 – 2008 company and have installations across India and more than 15+ countries. We have done almost all type of LPG gas storage installation across various segment of industries.

Vapor Off Take (VOT)
Skid Mounted LOT (SLOT)
Mobile Skid Mounted LOT (MOBI SLOT)
PICO SLOT
LPG LOT – 425 kg
LPG LOT – 47.5 kg
LPG Propane Bulk Installation

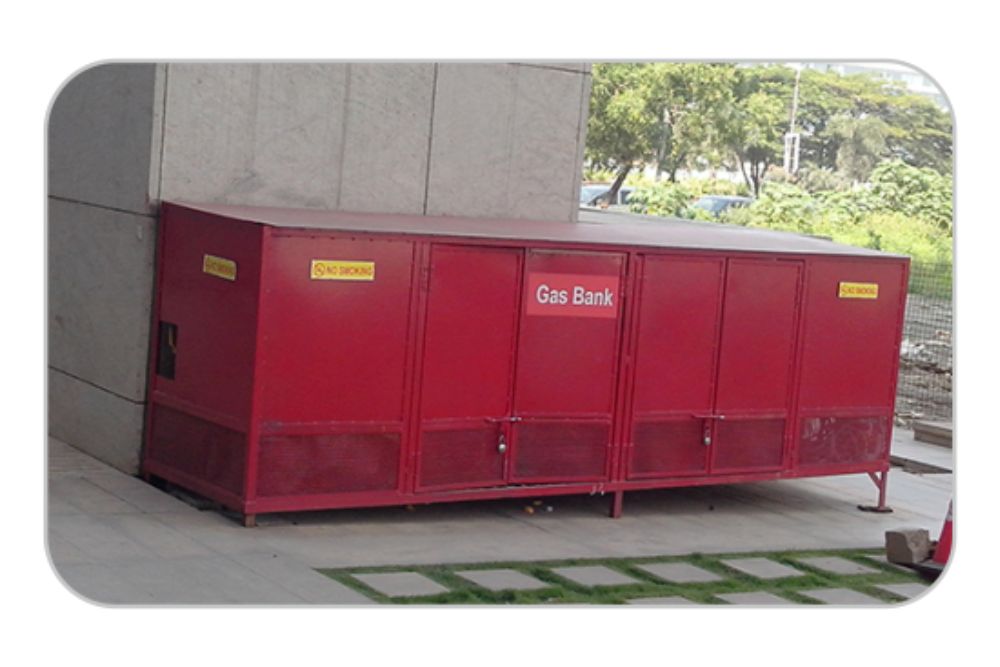

Vapor Off Take (VOT)


The ‘N’ no. Of Cylinders are connected to the manifold & the Vaporized LPG is directly drawn from the cylinders with Natural Vaporization Process. This vaporized LPG is passed through the properly designed 1st Stage & 2nd Stage Pressure Reducing Station. This LPG VOT facility is normally recommended for Low utility consumption per hour of LPG.

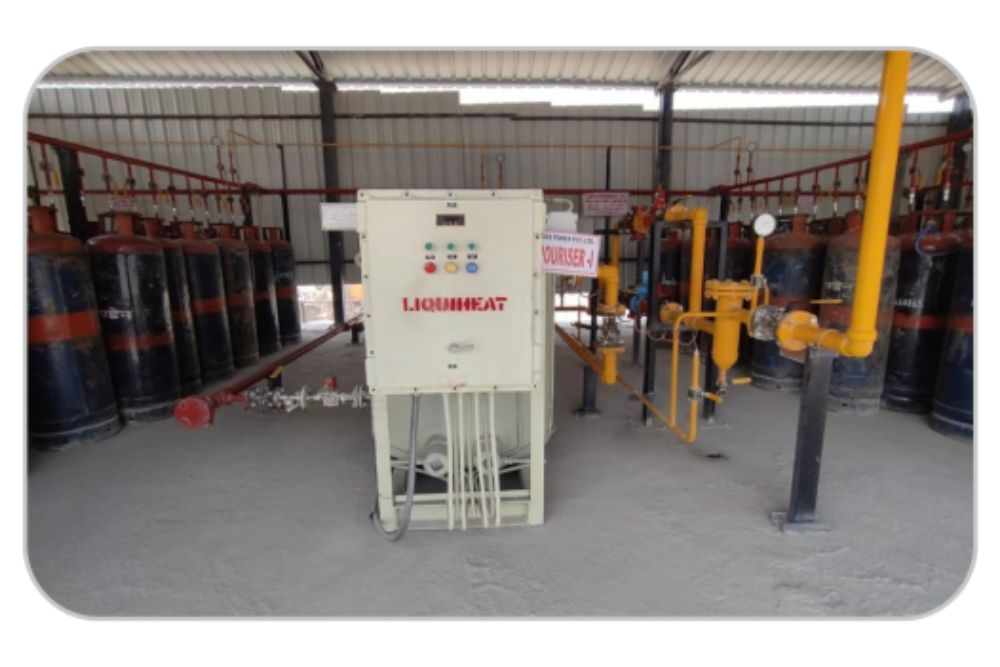

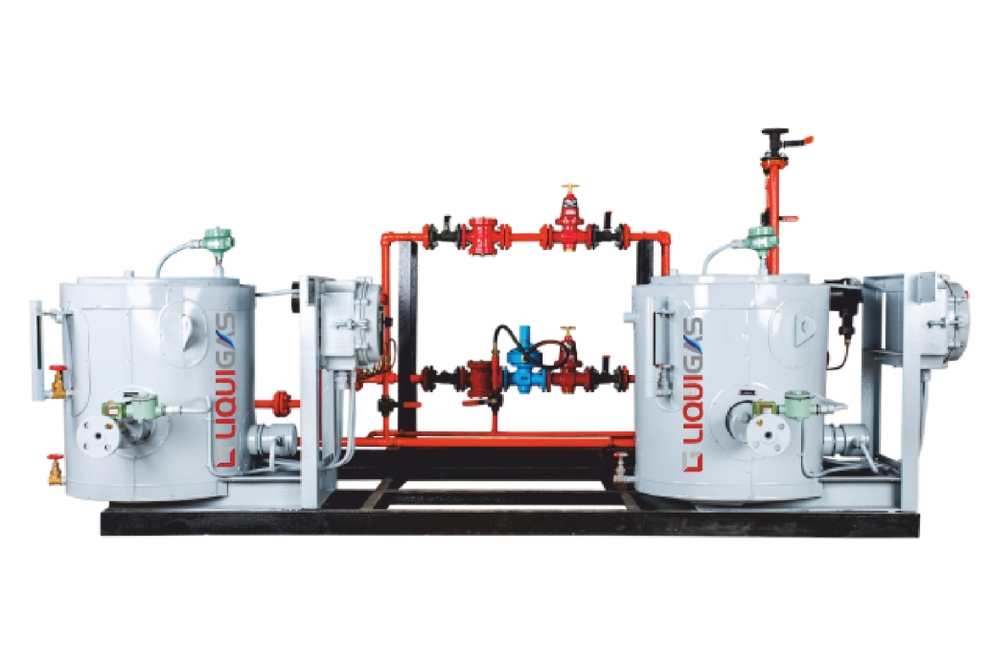

Skid Mounted LOT (SLOT)


Liquitherm has been engineered by most respected designers from IIT Mumbai and leaders in Gas Engineering Company having experience of more than 16 years in the field of LPG and Thermal Engineering. We specialize in the manufacturing LPG Vaporisers of various types and capacities according to the need of the customer.
LOT System :
  • Emergency Cut-off system for entire SKID.
  • LPG pressure safety valve – 15 bar
  • Explosion Proof Design
  • High water temperature cut off.
  • Low water level control by magnetic level switch
  • Water over flow control mechanism.
  • Special Liquid LPG OVERFLOW cut off arrangements- PUREGAS
  • Temperature and Level Gauges
  • LPG Pressure Switch
  • Inlet and outlet pressure gauges with isolation Valves
  • Slam shut off valve
  • Explosion proof type MCB arrangements for Vaporizer ON OFF
  • Electric power lamp for the power on – off condition

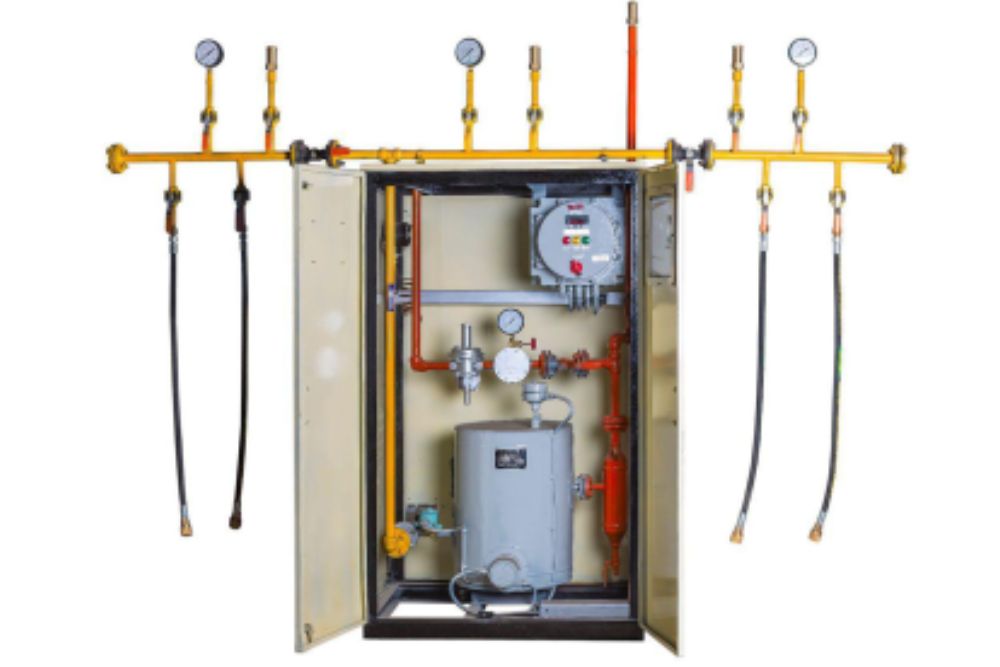

Mobile Skid Mounted LOT (MOBI SLOT)


MOBISLOT™ is India’s First Portable / Mobile Installation (S-LOT In Cabinet) Designed by Kelvin Energy Solutions, which can be easily shifted from one place to another with no damage / Wastage of Components and time.

Mobi-SLOT ™ over Conventional Manifold (VOT) system:

Great Aesthetical Look of System

  • Suitable for the Flowrate upto 50Kg/Hr
  • No Pressure drop at peak load.
  • No need of putting cylinders in Hot Water which is very unsafe and risky.
  • Compact installation-Space Savings-More safe, as only 2 Cylinders required against 20 Cylinders. No. of Leak Points are reduced and hence it’s very safe. Safety tripping are inbuilt in the system itself.
  • Facility is also designed for duel usage enabling customer to switchover from LOT to VOT
  • Facility is ready to use (Plug LPG cylinders and Use) and can be easily relocated if required

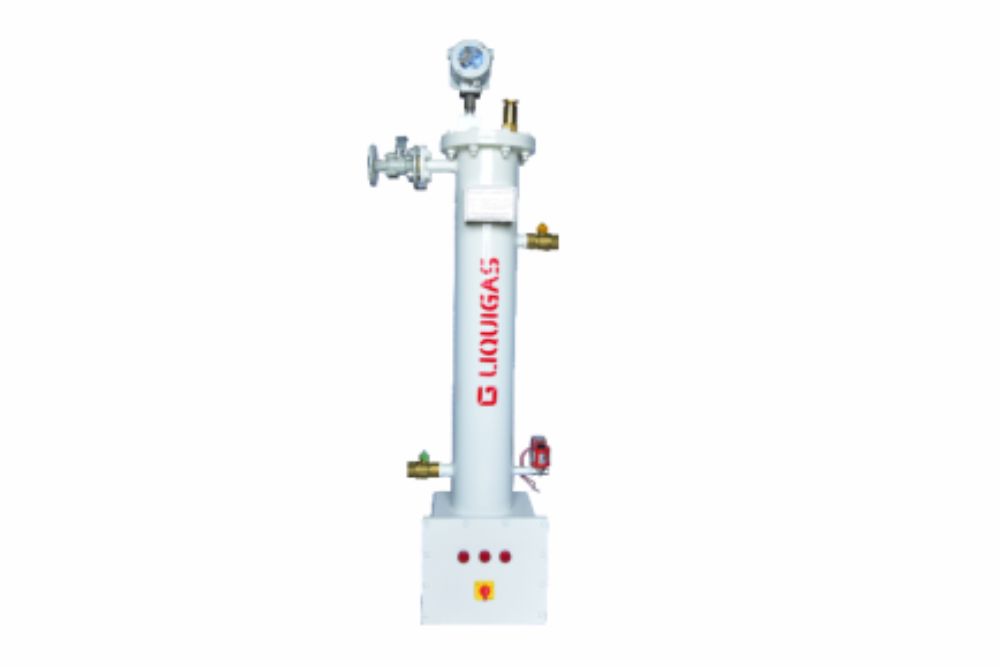

PICO SLOT


19KG PICO – SLOT over Conventional Manifold (VOT) system:
  1. Installation Confirms to Indian Gas Cylinder Rules, IS 6044 Code & OISD 162.
  2. Requires the least space as compared to other traditional systems.
  3. PESO Approved, No licence required
  4. Relatively Less Footprint Area is required
  5. No need of putting cylinders in Hot Water which is very unsafe and risky.
  6. No Pressure drop at peak load.
  7. Inbuilt Excess Flow Check Valve
  8. Multifunctional Facility with both liquid and vapour withdrawal port, To Ensure Uninterrupted & Seamless LPG Supply
  9. Simple to Operate
  10. Ensures complete withdrawal of LPG, thus minimizing the residual gas effect.
  11. PICO – SLOT Facility, supply homogeneous LPG Mixture (Propane + Butane), which helps to maintain consistent pressure till end & improves efficiency.
  12. LPG as its Preheated, gets good combustion efficiency compared with LPG VOT System.

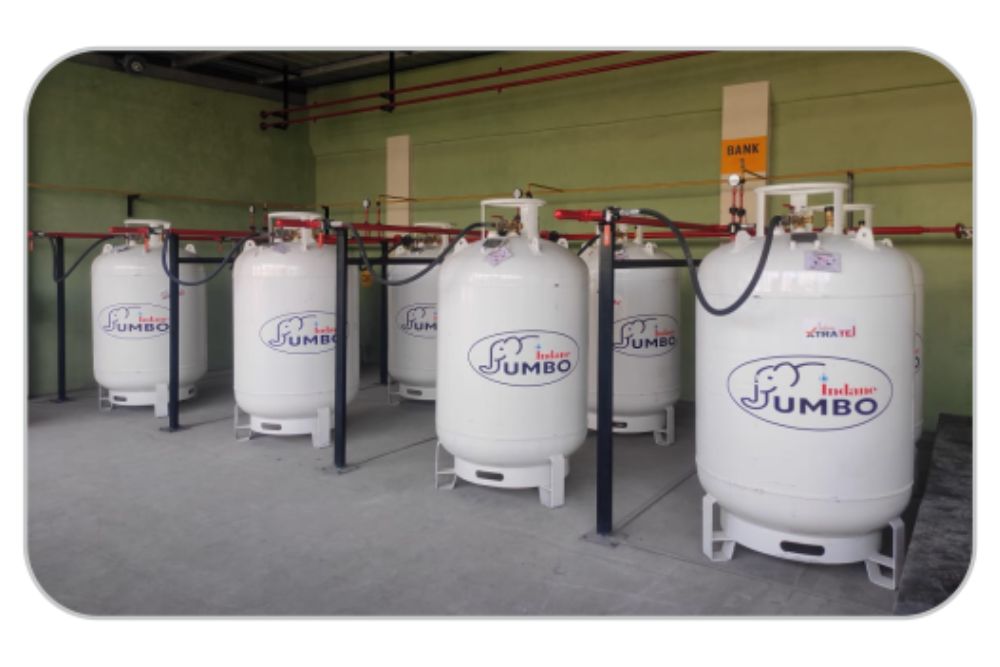

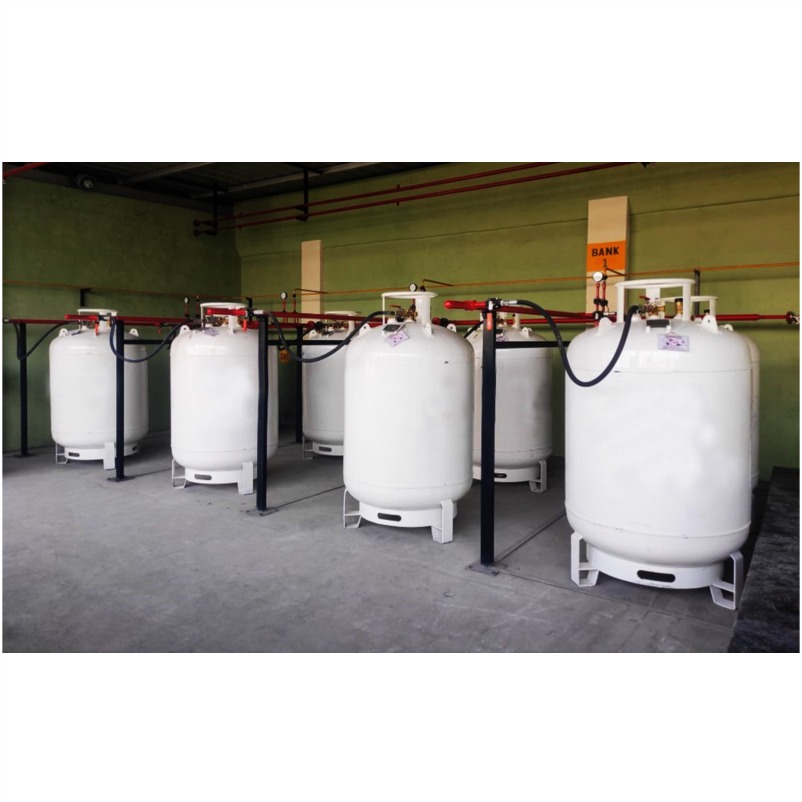

LPG LOT – 425 kg


Liquefied Petroleum Gas (LPG) is generic name for mixtures of hydrocarbon gases, mainly Propane and Butane. LPG is a clean burning and efficient fuel. It is a vital source of energy in the world today. It is a modern and safe fuel, providing heat and power to Industrial, Commercial and Domestic Customers. Since LPG is portable, it can be transported, stored and can be easily used for most of the application, will sufficient reserves to last for many decades.
Existing LPG supplies in India are majorly done through 19kg/33kg/47.5kg Commercial and Industrial LPG cylinders, when consumption is more than 20kg/hour quantity of the cylinders increases to a reasonable number and it creates safety as well handling issues. To overcome this, concept of 450kg SUMO cylinders have been introduced.
LPG though the most sophisticated and environmentally friendly fuel, is facing challenges with respect to availability of space for bulk installations and hence we have addressed it through the revolutionary concept of 450kg installations as the energy environment is getting complex we need to come up with innovative solutions to cater the industrial/commercial requirements.
Features
  • The 450kg installation conforms to IS6044 & OISD 162 and international CE Norms
  • Requires the least space as compared to other traditional systems
  • Relatively Less Footprint Area is required
    Less leakage pointsLess Hoses joints and easy handling compared to LOT, VOT and Bulk
  • The 450kg installation is equipped with a multifunction valve and conforms to NFPA 58 requirements.
  • Multifunctional value with both liquid and vapour withdrawal port
  • Enhanced Safety
  • Simple to Operate
  • Allows for complete withdrawal of not only liquid but also vapour, thus minimizing the residual gas effect
  • PESO Approved, No Licence required
  • The capability of scaling up in case of higher production at your unit resulting in increased flow rate of LPG, with minimal changes to the system
  • The LPG composition is constant thereby resulting in optional combustion performance
  • Magnetic Level Gauge to indicate gas level of liquid LPG
  • Inbuilt Excess Flow Check Valve
  • Quick release coupling arrangement to enhance safety during changeover

LPG LOT – 47.5 kg


Liquefied Petroleum Gas (LPG) is generic name for mixtures of hydrocarbon gases, mainly Propane and Butane. LPG is a clean burning and efficient fuel. It is a vital source of energy in the world today. It is a modern and safe fuel, providing heat and power to Industrial, Commercial and Domestic Customers. Since LPG is portable, it can be transported, stored and can be easily used for most of the application, will sufficient reserves to last for many decades.
Existing LPG supplies in India are majorly done through 19kg/33kg/47.5kg Commercial and Industrial LPG cylinders, when consumption is more than 20kg/hour quantity of the cylinders increases to a reasonable number and it creates safety as well handling issues. To overcome this, concept of 450kg SUMO cylinders have been introduced.
LPG though the most sophisticated and environmentally friendly fuel, is facing challenges with respect to availability of space for bulk installations and hence we have addressed it through the revolutionary concept of 450kg installations as the energy environment is getting complex we need to come up with innovative solutions to cater the industrial/commercial requirements.
Features
  • The 450kg installation conforms to IS6044 & OISD 162 and international CE Norms
  • Requires the least space as compared to other traditional systems
  • Relatively Less Footprint Area is required
    Less leakage pointsLess Hoses joints and easy handling compared to LOT, VOT and Bulk
  • The 450kg installation is equipped with a multifunction valve and conforms to NFPA 58 requirements.
  • Multifunctional value with both liquid and vapour withdrawal port
  • Enhanced Safety
  • Simple to Operate
  • Allows for complete withdrawal of not only liquid but also vapour, thus minimizing the residual gas effect
  • PESO Approved, No Licence required
  • The capability of scaling up in case of higher production at your unit resulting in increased flow rate of LPG, with minimal changes to the system
  • The LPG composition is constant thereby resulting in optional combustion performance
  • Magnetic Level Gauge to indicate gas level of liquid LPG
  • Inbuilt Excess Flow Check Valve
  • Quick release coupling arrangement to enhance safety during changeover

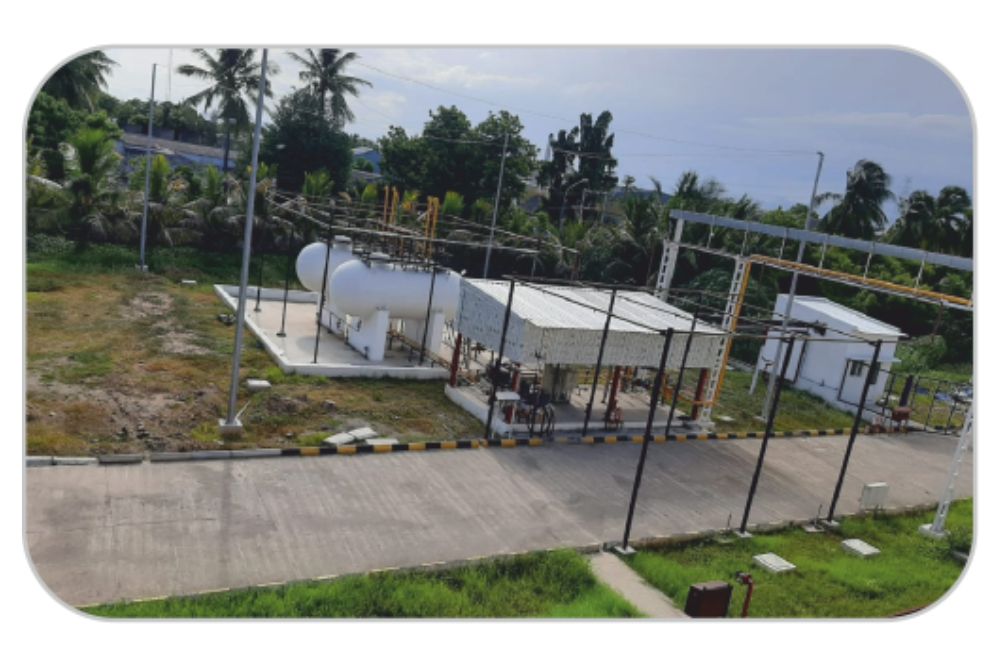

LPG Propane Bulk Installation


Liquigas Undertake Entire Turn key Projects right from design, engineering, supply, Installation, testing and commissioning of Above Ground, Mounded and Under Ground Tanks for Propane / LPG Storage along with most advanced Vaporization Techniques, Safety Interlocking Controls, Gas Compressors & Unloading Pumps, Instrumentation Part, Fire Hydrants & Sprinklers Facility, Leak Detection System and Handling Facilities, meeting all the required statutory regulation and norms.
